MX-3692 Pod

Introducing the simplest, most flexible audiophile 3-way speaker systems you have ever seen. No other manufacturer comes close

The MX-3692 POD 6X9” component system is designed and built for the unique demands of the car audio environment

Built to deliver the truest, in-car sound possible, the most accurate and natural performance ever-the type of performance that has earned our design team countless awards and unanimous praise from around the world. Smooth and accurate highs. The 2” mid-tweeter speaker along with the 1” image tweeters makes this system the easies to install 3-way system in the market. The WS-100i 1” imaging soft dome tweeters combine to deliver superb detail and incredible clarity. Install with literally zero holes to drill.

The 6X9” carbon fiber woofer is smooth with a fast deep clean sound into the lowest bass frequencies. Combined with the superior MX-1000SX “Transient Optimized” 24dB crossover makes this system a sound performing 6X9” component system audiophile listeners praise over and over.

MX-3692 Pod



MX-3692 Pod

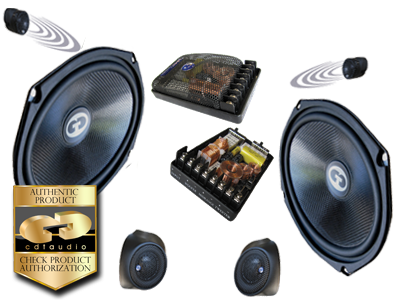

Technical specs and contents

  • 1 pr 6X9” woven carbon fiber woofer
  • 1 pr 2” wide range mid-tweeter speaker pods
  • 1 pr 1.1” silk dome tweeter
  • 1 pr MX-1000SX ”Transient Optimized” 24dB xover
  • Frequency response: 30Hz-20.000Hz
  • Power handling: 200WRMS
  • Impedance: 4 Ohm
  • Sensitivity: 90.7dB
  • Dimensions: 6.625”X 9.25” Ellipse(168.3mm X 235mm) Ellipse(Exclusive of mounting tabs) 6” X 8.625” Ellipse (152.4mm X 219mm) Ellipse
  • Free Air use mount in rear deck,large door or panel.
  • Mounting depth: 3.5”
  • Cone: carbon fiber cone
  • Magnet weight 30 Oz
  • Cone surround Butyl rubber
  • Voice coil: 2.0”
  • Dimensions:
    2” mid-tweeter speaker
    2.5” x 2.5” x 3”



<< Back to MX-Designs 3-Way Systems

Price (incl. warranty)

Promo Price: $239.99

Reg. $599.99
