MX-Designs introduces a true audiophile easy to install 6.5” component coax.

A Superior Audiophile Wide Dispersion 6.5” Cast Alloy Coaxial Speaker

Experience a component coaxial speaker with tweeter frequency response and ultra wide dispersion way beyond any other 6.5” coaxial speaker system in the market. The superior ultra smooth audiophile wide dispersion tweeter is housed in a special designed cast aluminum mounting bezel creating a superior wider upper frequency dispersion in comparison to any other coax designed speaker in the market. This wider dispersion tweeter design opens up clarity in the vocal range way beyond imagination, it must be heard. This design is an installer dream one of the easiest quick drop in installation audiophile component coax speaker sets in the market.

MX Designs introduces a true audiophile 6.5” component coax w/top of the line tweeter for your vehicle quick and easy installation. This woofer/tweeter speaker designs in combination with the unique MX-1000SX crossover makes a component coax speaker no other manufacturer comes close.

By using the multi flexible MX-1000SX crossover the tweeter can be tuned starting at 1500Hz or 3500Hz depending on the mounting position to assure the best blend between woofer and tweeter in your specific vehicle. The crossover is a 24dB Elliptic design, has 24 different tweeter sound adjustments and 6 attenuation options to assure the best ever system tuning.

Finally a true component coax speaker with separate high-end 24dB crossover competing with the best high-end separate component systems in the market. Suitable for enclosed or free air use in your vehicle, these drivers provide full, rich, smooth sound w/enhanced wide dispersion with sound performance never heard of from a 6.5” coaxial woofer and tweeter before. If you’re listening tastes are for smooth sound with superior highs and bass response in smaller spaces these drivers provide optimum value and minimized installation cost. Designed and built to deliver accurate and natural sound performance never heard before from an easy to install 6.5” component coaxial speaker system.




(MX-6100WD.2 2 Ohm version)

Technical specs and contents

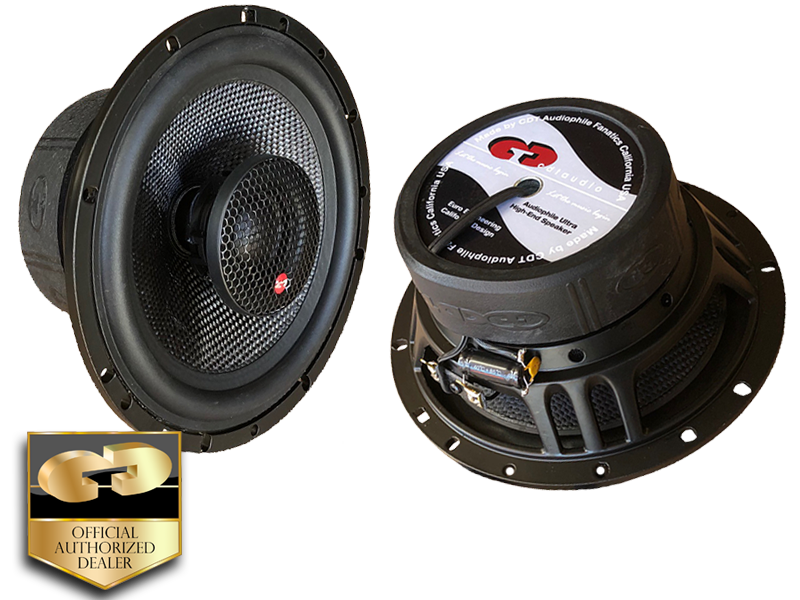

  • 1 pr MX-6 6.5” Carbon reinforced Mid-woofer
  • 1 pr MX-010WD 1.1” silk dome tweeter
  • 1 pr MX-1000SX Multi flexible multi adjustment 24dB Elliptic design crossover
  • Frequency response 55Hz-20.000Hz (40Hz-20.000Hz in ported enclosure)
  • Power handling: 200Watt RMS HPF 120Hz. 250 watt pk
  • Impedance 4 Ohm (2 Ohm available)
  • Sensitivity: 92.5dB
  • Mounting depth: 2.75”
  • Diameter: 6.5” (165mm)
  • Woofer Cone: Reinforced
  • Carbon Fiber Magnet weight: 20 Oz

  • Magnet rubber boot is optional


<< Back to MX-Designs Coaxials Price $299.99
